Elkay Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Equal Double Bowl Tall Farmhouse Sink Kit with Aqua Divide EFRUFFA3417DBG

SKU: EFRUFFA3417DBG
Price:
Sale price$1,177.99 Regular price$1,570.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $1,177.99

Free shipping over $200

Key Features

Bowls 2
Mount Type Farmhouse
Gauge 16
Spec Sheet Download
See all product information

Similar products

Chicago Faucets 8" Wall Mounted Straight Sink Faucet 897 Series
Chicago Faucets 1-100XTDAB CartridgeChicago Faucets 1-100Xtdab Left Hand Quaturn Unit
Chicago Faucets Chicago Faucets 1-100XTDAB Cartridge
Sale price$31.26 Regular price$43.23
Chicago Faucets 1-099XTDAB CartridgeChicago Faucets Right Hand Quaturn Unit 1-099XTDAB
Chicago Faucets Chicago Faucets 1-099XTDAB Cartridge
Sale price$31.26 Regular price$43.23
Compare Products

Specifications

Description

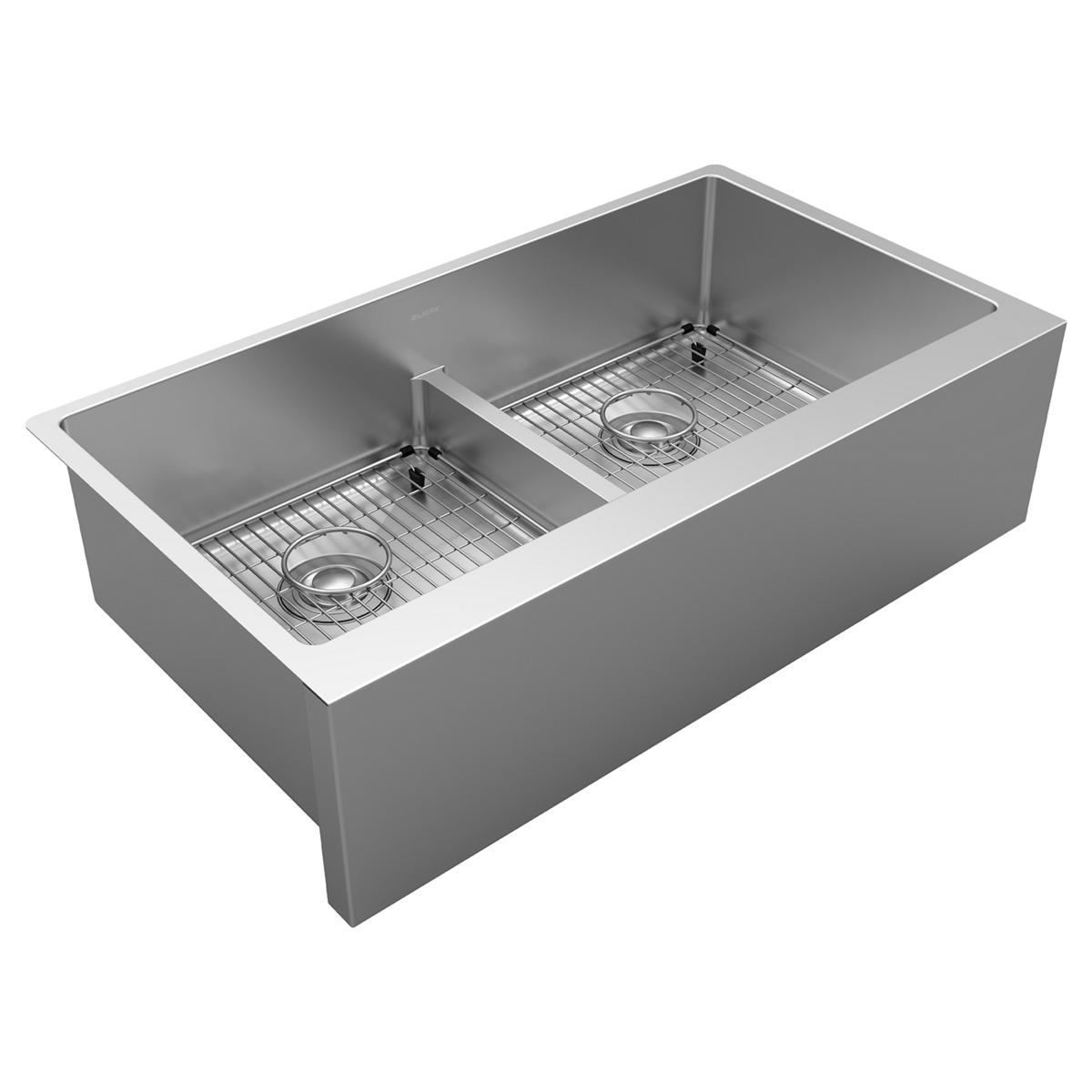

The Elkay EFRUFFA3417DBG is a Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Equal Double Bowl Tall Farmhouse Sink Kit with Aqua Divide. It features a stainless steel body.

The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.

Features

  • AQUA DIVIDE: Low center divider allows pan handles to extend over center and makes it easy to wash large items, like baking sheets, over both bowls.

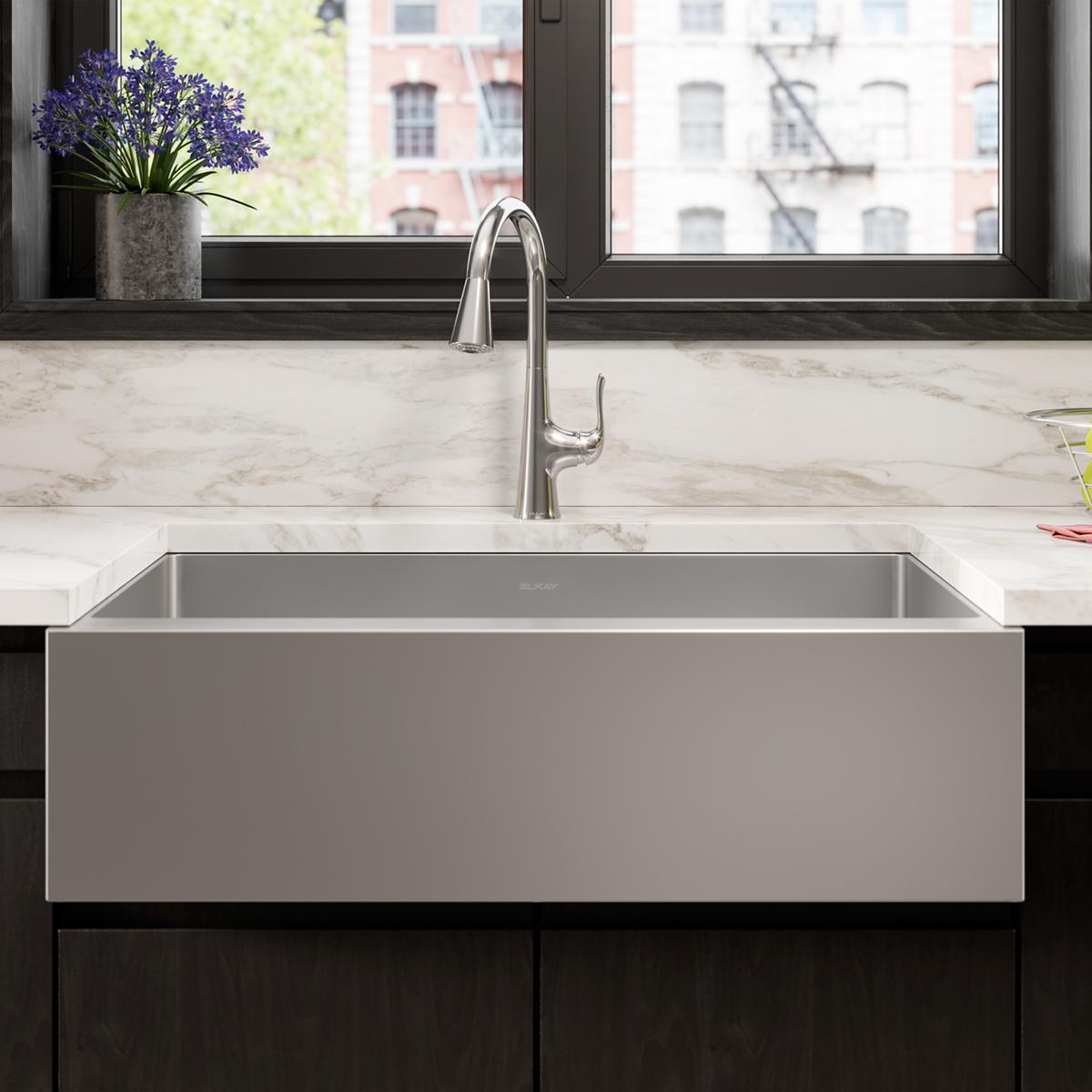

  • FARMHOUSE DESIGN: Material extends to the front panel of the sink, adding a stylish design element to your kitchen. Compatible with standard farmhouse cabinet.
  • DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
  • 16-GAUGE STAINLESS STEEL: Premium 16-gauge thickness and Type 304 stainless steel for immense durability, performance and lustrous beauty.
  • SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.
  • TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
  • OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
  • LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
  • EXTRA DEEP BOWLS: High-capacity bowls offer more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.

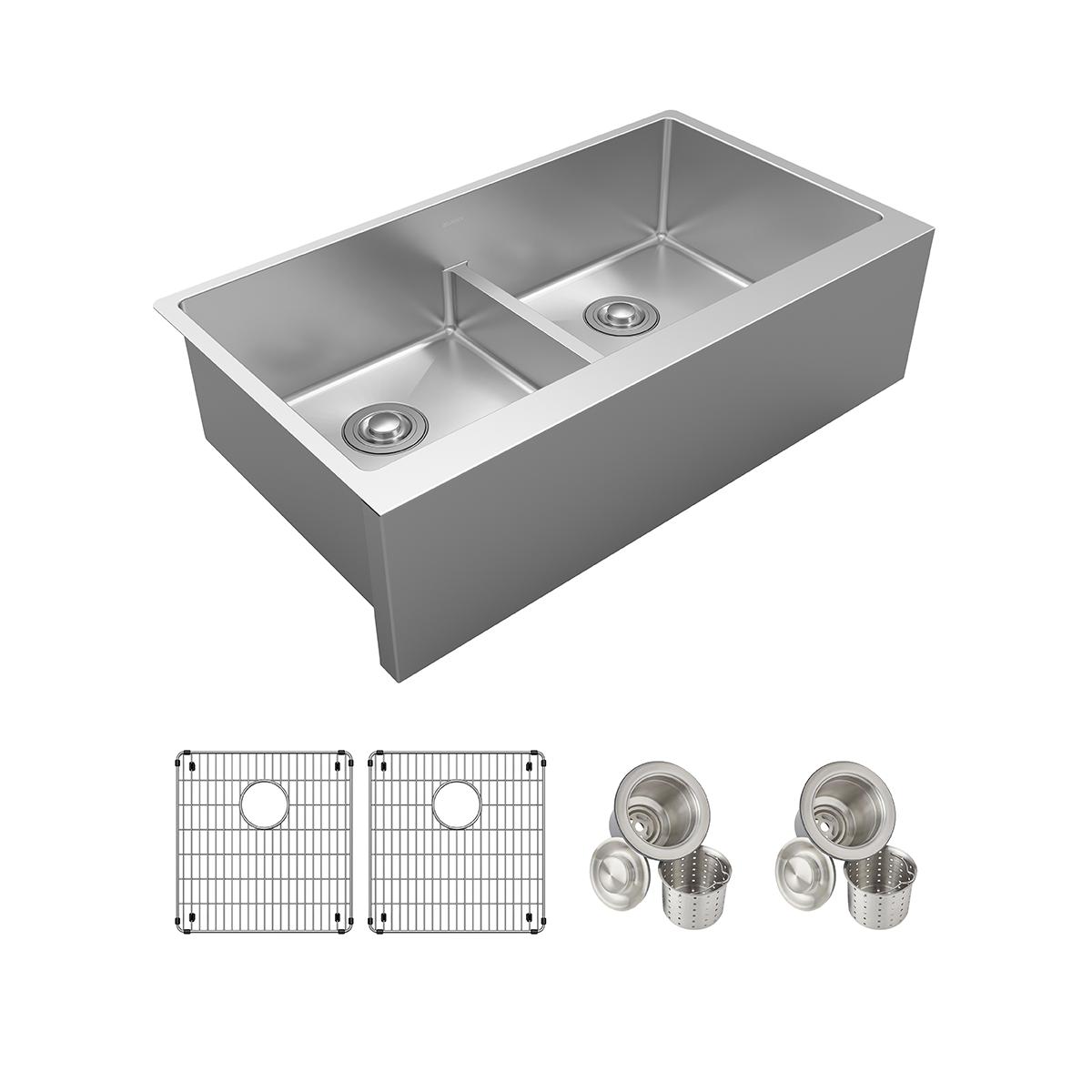

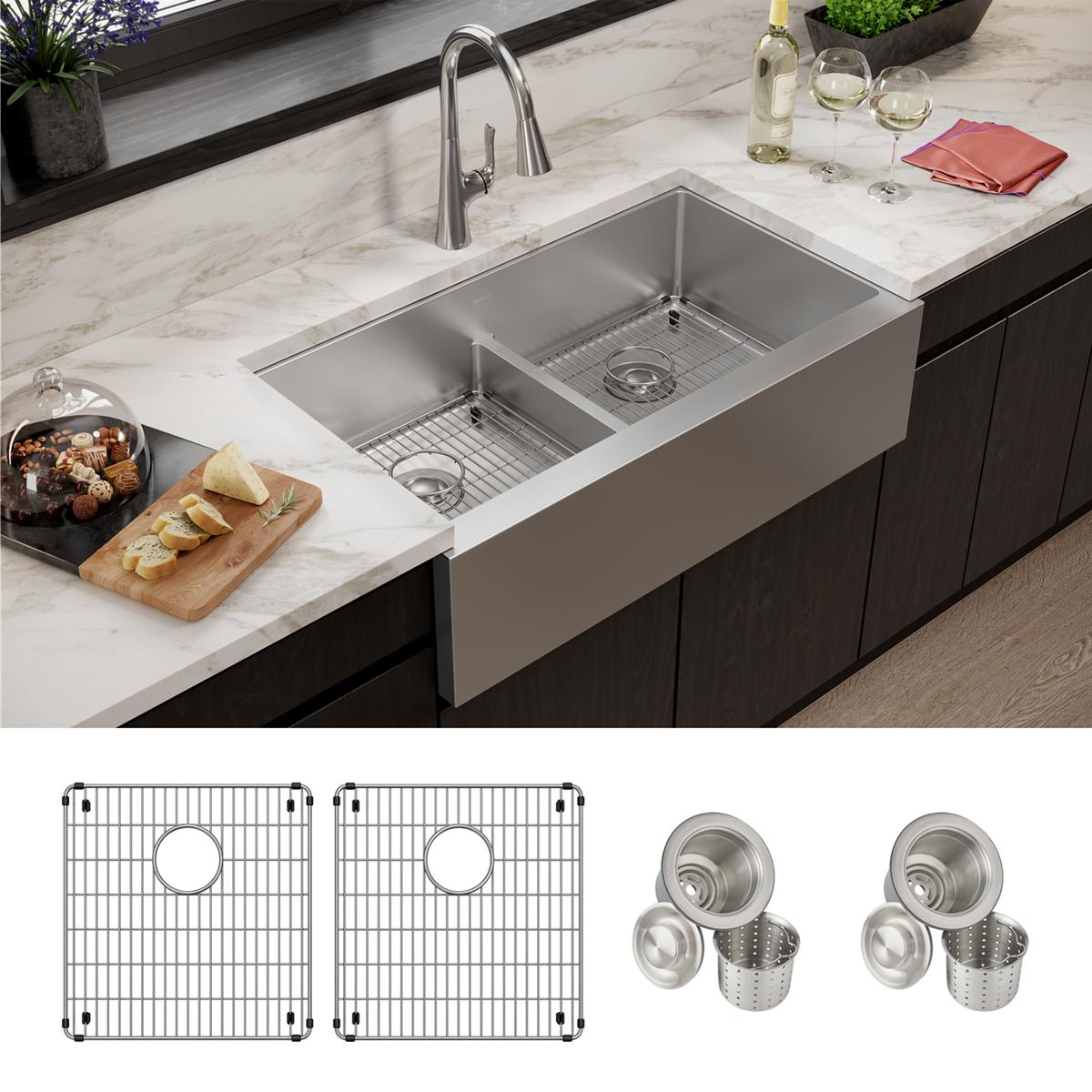

  • KIT INCLUDES: EFRUFFA3417 sink, two CTXFBG1516 bottom grids, two LKDD deep strainer drains; conveniently packaged together to save you time.

Common Questions

What size cabinet does this need?
A minimum 36" wide base cabinet.
What does 16-gauge mean?
16 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.
What is included in the kit?
This kit includes: two CTXFBG1516 bottom grids, two LKDD deep strainer drains.

Specifications

  • Type: Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Equal Double Bowl Tall Farmhouse Sink Kit with Aqua Divide
  • Outlet Size: 3-1/2"
  • Body Material: Stainless Steel
  • Country of Origin: China
  • MPN: EFRUFFA3417DBG
  • Certifications: ASME A112.19.3/CSA B45.4
  • Number of Bowls: 2
  • Bowl Configuration: Equal Double
  • Minimum Cabinet Size (in): 36

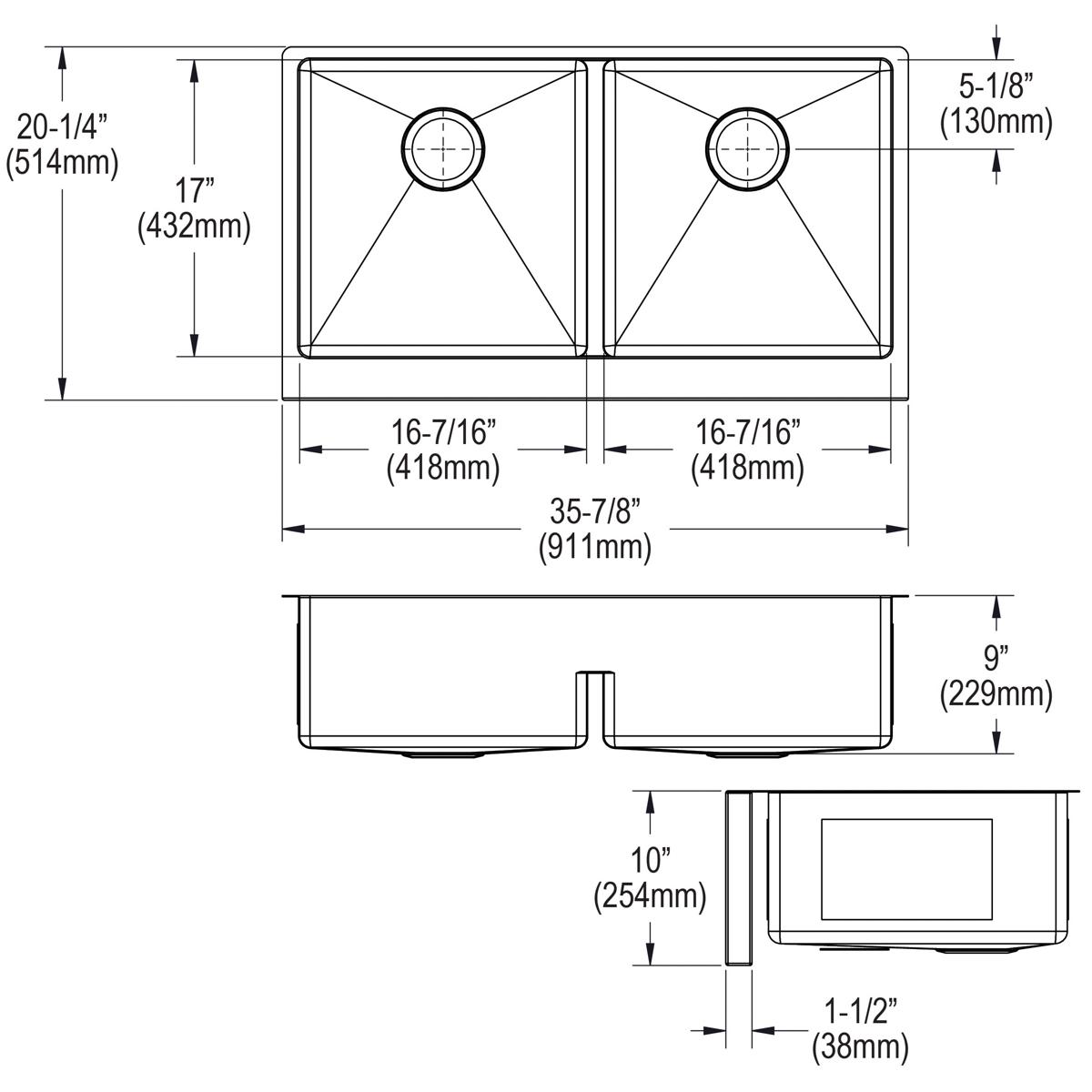

  • Bowl Dimensions: 16-7/16" x 17" x 9";16-7/16" x 17" x 9"
  • Drain Size, Bowl 2 (in): 3.5
  • Drain Location: Rear Center
  • Gauge: 16
  • Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
  • Template Included: No
  • Mounting Hardware: Part # 54300008 included
  • Mount Type: Farmhouse
  • Coating / Finish: Polished Satin
  • Overall Length (in): 35.875
  • Overall Width (in): 20.25
  • Overall Height (in): 10.0
  • Kit Includes: two CTXFBG1516 bottom grids, two LKDD deep strainer drains

Product Information

SKUUPCCountry of OriginSpec SheetInstall Sheet
EFRUFFA3417DBG 094902122809 China DownloadDownload

Dimensions

Outlet Size 3-1/2" ——

Details

Series EFRUFFA3417DBG Device Type Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Equal Double Bowl Tall Farmhouse Sink Kit with Aqua Divide
Body Material Stainless Steel Contents two CTXFBG1516 bottom grids, two LKDD deep strainer drains
Coating Polished Satin Mount type Farmhouse
Overall height in 10.0 in Overall length in 35.875 in
Overall width in 20.25 in Bowl configuration Equal Double
Bowl count 2 Bowl dimensions 16-7/16" x 17" x 9", 16-7/16" x 17" x 9"
Drain location Rear Center Drain size bowl2 in 3.5 in
Gauge 16 Minimum cabinet size in 36
Mounting hardware Part # 54300008 included Sound deadening Full spray sides and bottom with Sides and Bottom pads

Certifications & Standards

ASME A112.19.3/CSA B45.4 —
