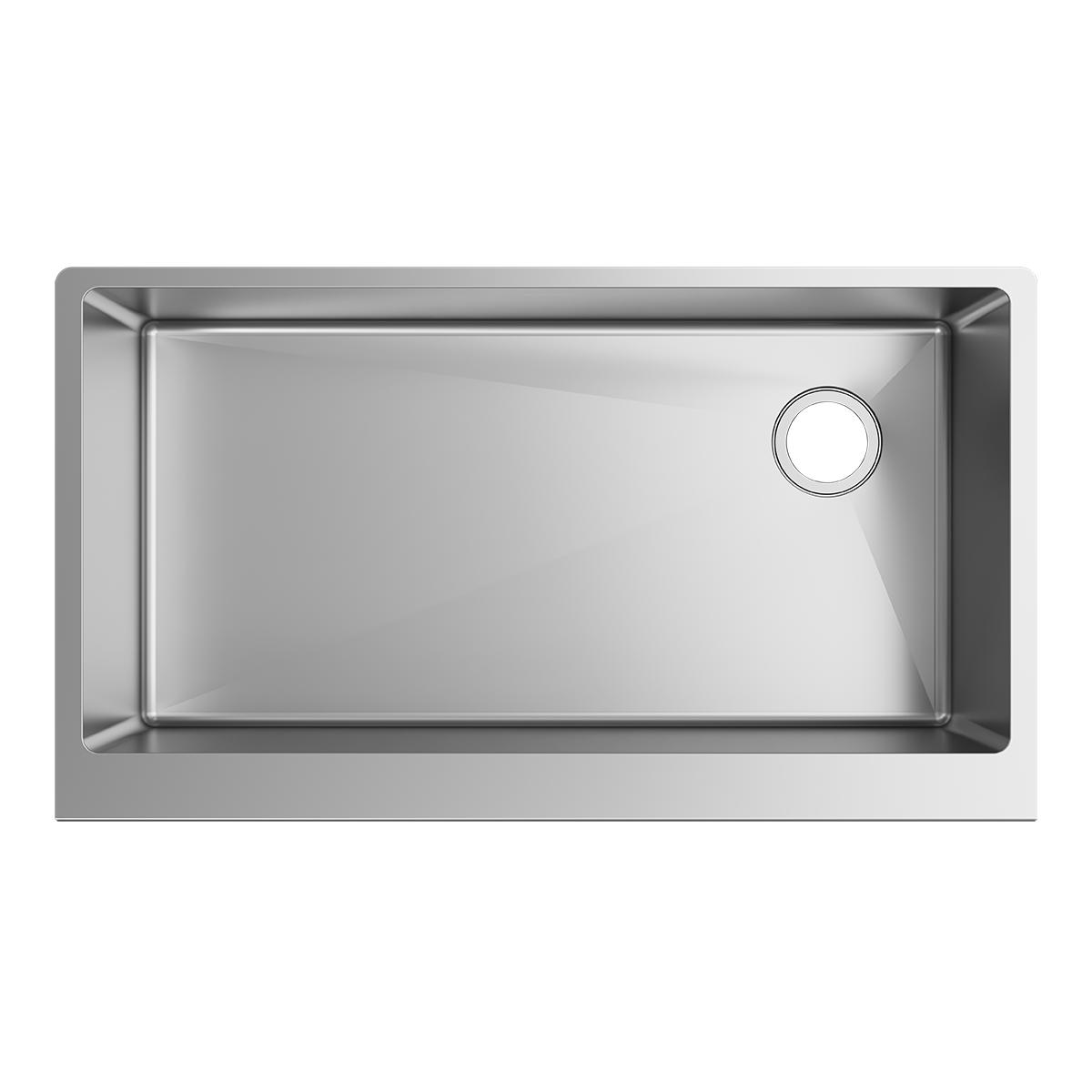

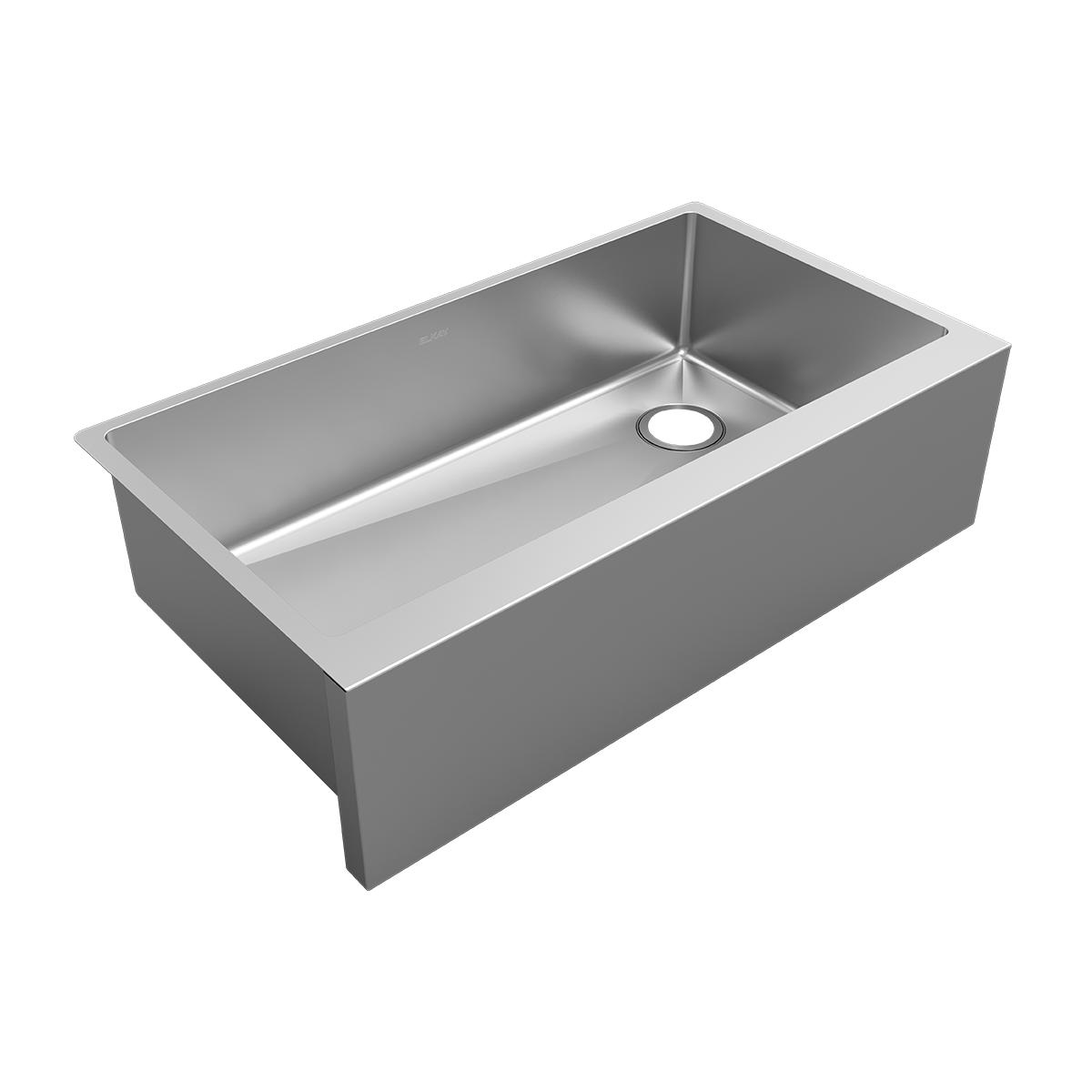

The Elkay EFRUFF3417R is a Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Single Bowl Tall Farmhouse Sink. It features a stainless steel body.
The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Features
- FARMHOUSE DESIGN: Material extends to the front panel of the sink, adding a stylish design element to your kitchen. Compatible with standard farmhouse cabinet.
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
- 16-GAUGE STAINLESS STEEL: Premium 16-gauge thickness and Type 304 stainless steel for immense durability, performance and lustrous beauty.
- SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.
- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
- EXTRA DEEP BOWL: High-capacity bowl offers more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
- CROSS BREAKS: Creased accent lines in the sink bottom deliver superior drainage and give the sink a professional appearance.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
- CABINET SIZE: 36" minimum custom cabinet required for proper installation.
Common Questions
- What size cabinet does this need?
- A minimum 36" wide base cabinet.
- What does 16-gauge mean?
- 16 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.
Specifications
- Type: Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Single Bowl Tall Farmhouse Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- Country of Origin: China
- MPN: EFRUFF3417R
- Certifications: ASME A112.19.3/CSA B45.4, IAPMO
- Number of Bowls: 1
- Minimum Cabinet Size (in): 36

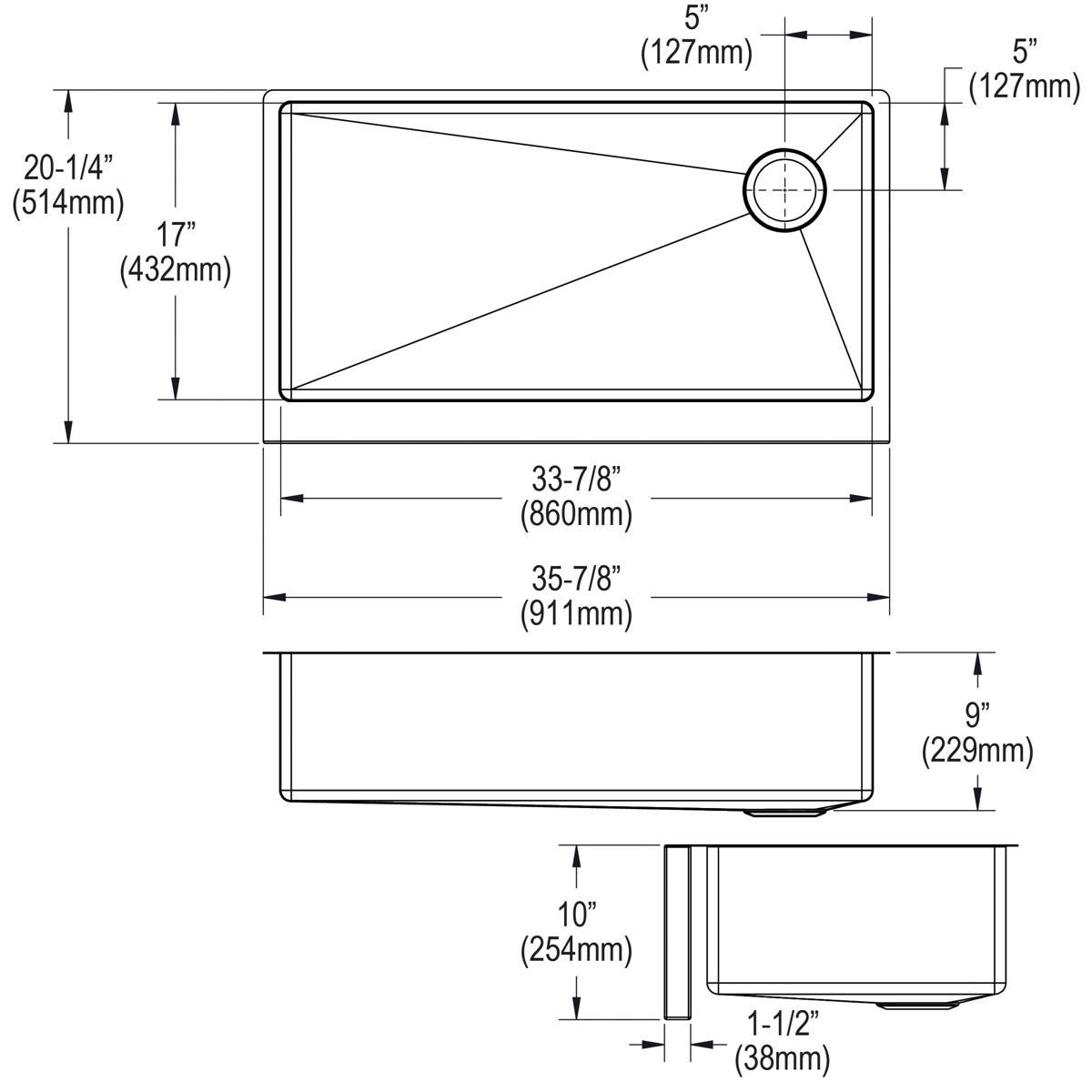

- Bowl Dimensions: 33-7/8" x 17" x 9"
- Drain Location: Rear Right
- Gauge: 16
- Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
- Template Included: No
- Mounting Hardware: Part # 54300008 included
- Mount Type: Farmhouse
- Coating / Finish: Polished Satin
- Overall Length (in): 35.875
- Overall Width (in): 20.25
- Overall Height (in): 10.0
Product Information
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | EFRUFF3417R | Device Type | Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Single Bowl Tall Farmhouse Sink |
| Body Material | Stainless Steel | Coating | Polished Satin |
| Mount type | Farmhouse | Overall height in | 10.0 in |
| Overall length in | 35.875 in | Overall width in | 20.25 in |
| Bowl count | 1 | Bowl dimensions | 33-7/8" x 17" x 9" |
| Drain location | Rear Right | Gauge | 16 |
| Minimum cabinet size in | 36 | Mounting hardware | Part # 54300008 included |
| Sound deadening | Full spray sides and bottom with Sides and Bottom pads | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | IAPMO |
Compare with similar products
| Contents | — | two CTXFBG1516 bottom grids, two LKDD deep strainer drains
| — | CTXFBG3316 bottom grid, LKDD deep strainer drain
| CTXFBG1316 bottom grid, CTXFBG1816 bottom grid, two LKDD deep strainer drains
| — |
| Series | EFRUFF3417R
| EFRUFFA3417DBG
| EFRUFFA3417
| EFRUFF3417RDBG
| EFRUFF23417DBG
| EFRUFF23417
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Single Bowl Tall Farmhouse Sink
| Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Equal Double Bowl Tall Farmhouse Sink Kit with Aqua Divide
| Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Equal Double Bowl Tall Farmhouse Sink with Aqua Divide
| Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Single Bowl Tall Farmhouse Sink Kit
| Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Double Bowl Tall Farmhouse Sink Kit
| Crosstown 16 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9" Double Bowl Tall Farmhouse Sink
|
| Outlet Size | 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4, IAPMO
|
