Description

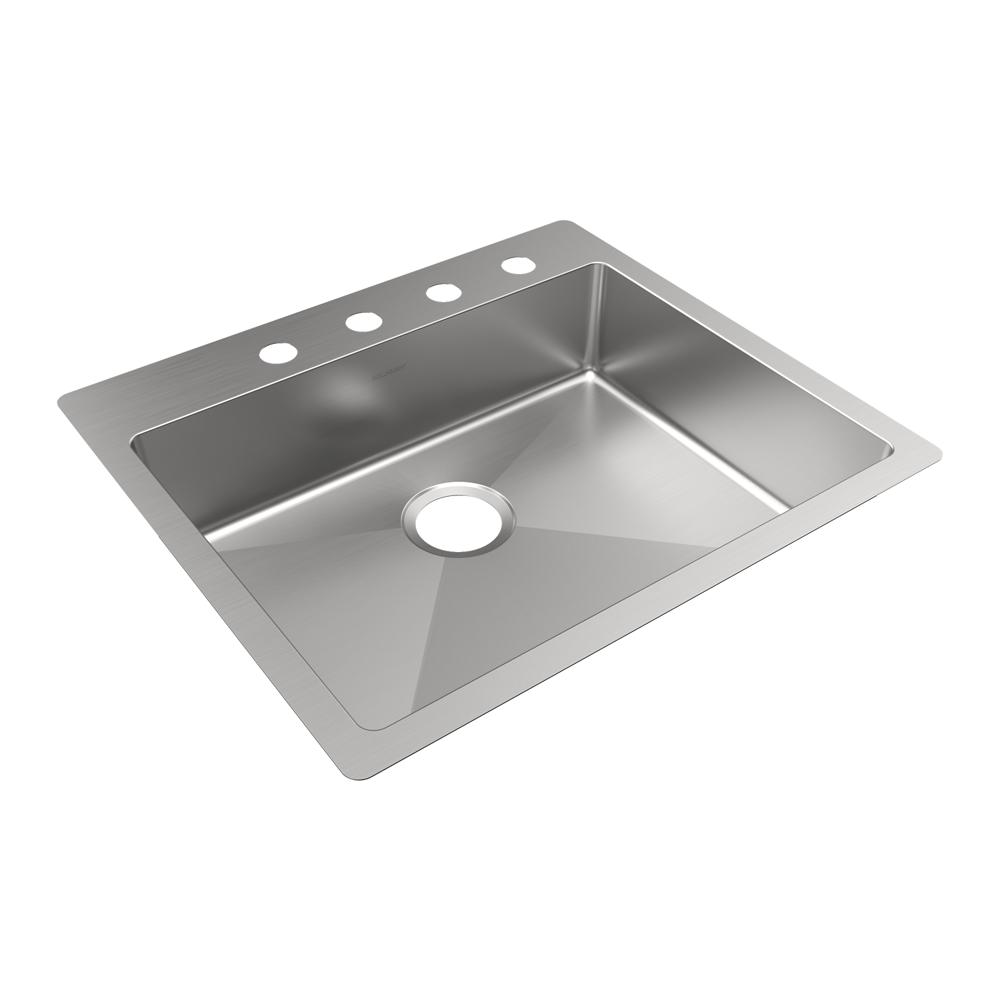

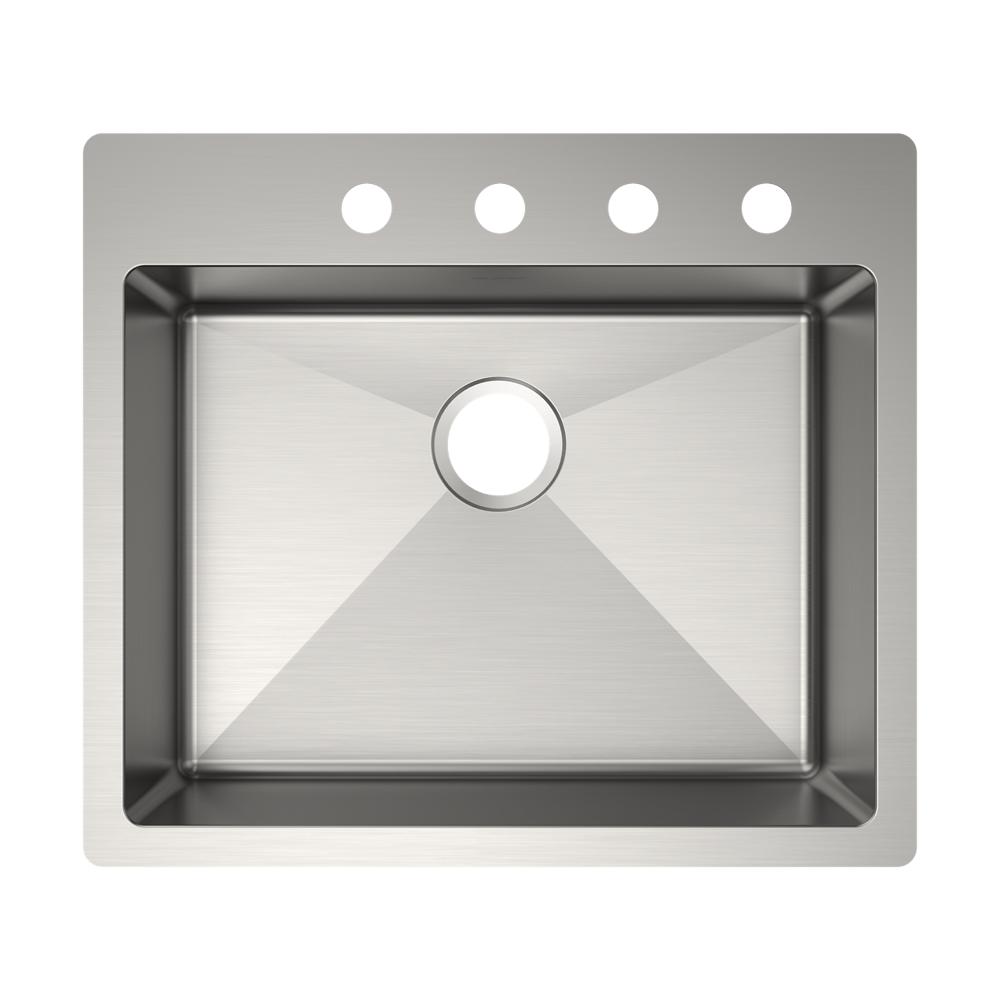

The Elkay ECTSRAD2522604 is a Crosstown 18 Gauge Stainless Steel 25" x 22" x 6" 4-Hole Single Bowl Dual Mount ADA Sink. It features a stainless steel body.
The Elkay Crosstown® collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Features
- ADA COMPLIANT: Product is ADA compliant when properly installed
- Slim Rim™: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty
- Sound Guard®: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink
- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation means less time under the sink for an easier install
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows
- CABINET SIZE: Minimum cabinet size for this sink is 30"
Common Questions
- What size cabinet does this need?
- A minimum 30" wide base cabinet.
- What does 18-gauge mean?
- 18 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet.
- Is this ADA compliant?
- Yes, this model meets ADA accessibility requirements for bowl depth.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 4.
Specifications
- Type: Crosstown® 18 Gauge Stainless Steel 25" x 22" x 6" 4-Hole Single Bowl Dual Mount ADA Sink
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- MPN: ECTSRAD2522604
- Certifications: ASME A112.19.3/CSA B45.4, ADA
- Number of Bowls: 1
- Minimum Cabinet Size (in): 30
- Bowl Dimensions: 22-1/2" x 16-3/4" x 6"
- Drain Location: Rear Center
- Gauge: 18
- Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
- Template Included: Yes
- Mounting Hardware: Part # 54300008 included
- Mount Type: Dual-Mount
- Coating / Finish: , Polished Satin
- Faucet Holes: 4
- Overall Length (in): 25.0
- Overall Width (in): 22.0
- Overall Height (in): 6.0
Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | ECTSRAD252260 | Device Type | Crosstown® 18 Gauge Stainless Steel 25" x 22" x 6" 4-Hole Single Bowl Dual Mount ADA Sink |
| Body Material | Stainless Steel | Coating | , Polished Satin |
| Hole count | 4 | Mount type | Dual-Mount |
| Overall height in | 6.0 in | Overall length in | 25.0 in |
| Overall width in | 22.0 in | Prop65 | Yes |
| Bowl count | 1 | Bowl dimensions | 22-1/2" x 16-3/4" x 6" |
| Drain location | Rear Center | Gauge | 18 |
| Minimum cabinet size in | 30 | Mounting hardware | Part # 54300008 included |
| Sound deadening | Full spray sides and bottom with Sides and Bottom pads | Template included | Yes |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | ADA |
Compare with similar products
| Series | ECTSRAD252260
| ECTSRSAD332260
| ECTSRSAD332260
| ECTSRSAD332260
| ECTSRSAD332260
| ECTSRSAD332260
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Crosstown® 18 Gauge Stainless Steel 25" x 22" x 6" 4-Hole Single Bowl Dual Mount ADA Sink
| Crosstown® 18 Gauge Stainless Steel 33" x 22" x 6" 5-Hole Single Bowl Dual Mount ADA Sink
| Crosstown® 18 Gauge Stainless Steel 33" x 22" x 6" 4-Hole Single Bowl Dual Mount ADA Sink
| Crosstown® 18 Gauge Stainless Steel 33" x 22" x 6" 3-Hole Single Bowl Dual Mount ADA Sink
| Crosstown® 18 Gauge Stainless Steel 33" x 22" x 6" 2-Hole Single Bowl Dual Mount ADA Sink
| Crosstown® 18 Gauge Stainless Steel 33" x 22" x 6" 1-Hole Single Bowl Dual Mount ADA Sink
|
| Outlet Size | 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | ASME A112.19.3/CSA B45.4, ADA
| ASME A112.19.3/CSA B45.4, ADA
| ASME A112.19.3/CSA B45.4, ADA
| ASME A112.19.3/CSA B45.4, ADA
| ASME A112.19.3/CSA B45.4, ADA
| ASME A112.19.3/CSA B45.4, ADA
|
